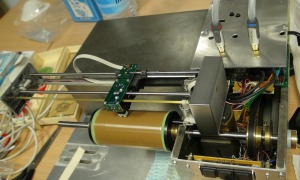

THE MACHINE

Device designed and manufactured by Franz Lechleitner

The Cylinder Player consists on:

  • Driving Unit:
  • Revox A80 capstan motor
  • Variable speed range from 65 rpm up to 260 rpm
  • In 2 ranges with digital read out of the speed.
  • PTFE bearings and highly polished shaft to smooth run
  • Cylinder fixing:
  • between two rubber coated holders allowing fixing of repaired and parttly damaged cylinders without any risc for damage.
  • Capable of managing standard, saloon and Giant concal cylinders of 100 grooves or 200 grooves per inch pitch
  • Arm drive:
  • modofied Revox B790 linear ton arm covering 2 minutes and 4 minutes cylinders
  • Power consumption: 100 W, 22 V
  • Pickup cartridge:
  • Shure M 44 - 7 stereo
  • Needles:
  • 185 µ, 254 µ, 305 µ fully front radius ellipt.

Preamplifier:

  • Österreichische Akademie Der Wissenschaften Inv. Nr. Ph.A.B. 35
  • Preampl. settings: vertical, flat
